The Short Answer
A standard 2 to 2.5 inch hot cocoa bomb fits a 3 x 3 x 3 inch box, and a 2.5 to 3 inch bomb fits a 3.5 inch cube. Every hot cocoa bomb box size follows one rule: interior space per bomb equals the widest decorated diameter plus 0.5 inch.

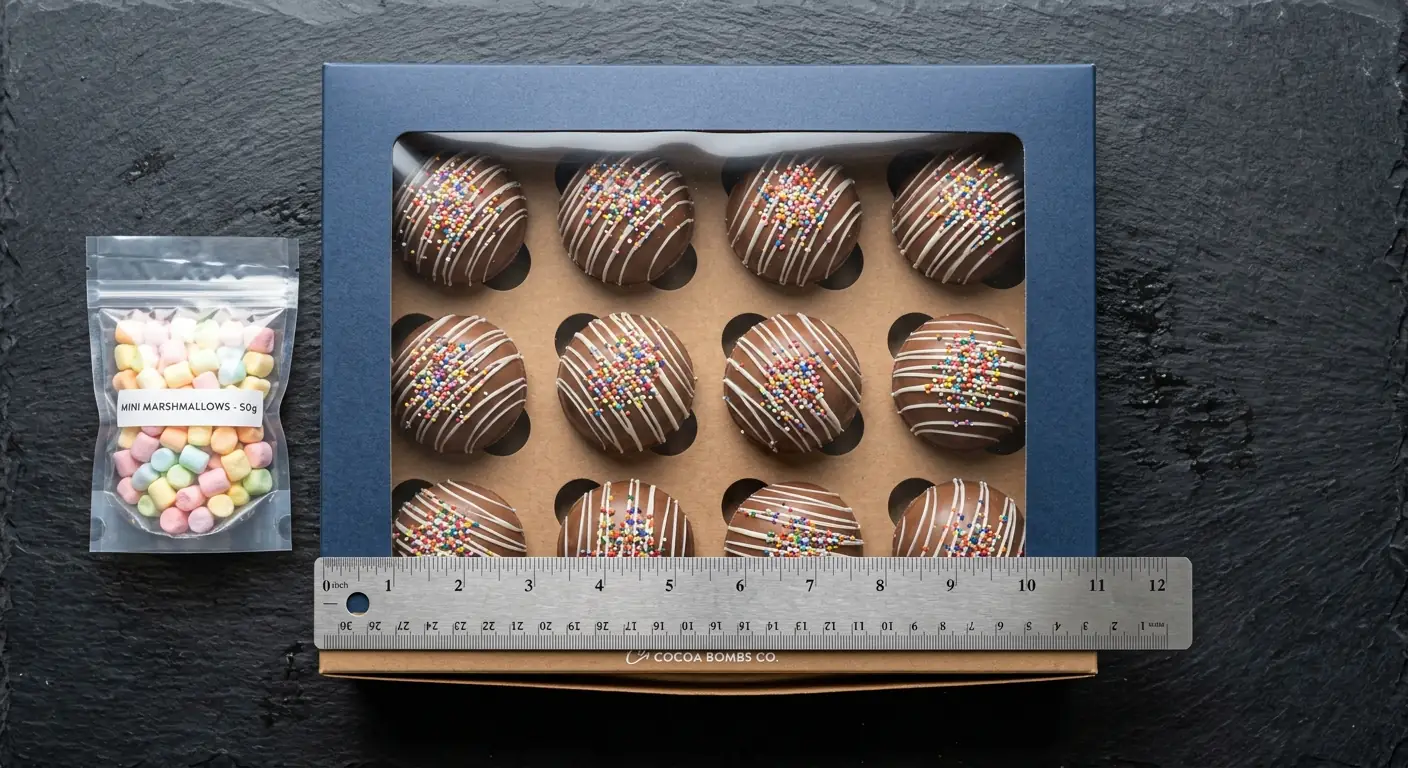

Hot Cocoa Bomb Box Sizes by Diameter and Count
Mini bombs (1.5 to 2 inches) need a 2.5 inch cell, standard bombs (2 to 2.5 inches) need a 3 inch cell, and jumbo bombs (2.5 to 3 inches) need a 3.5 inch cell. Hot chocolate bomb box dimensions scale in half-inch steps from there. The table lists interior height x width x depth in inches for every count.
| Count and layout | Mini (1.5-2 in) | Standard (2-2.5 in) | Jumbo (2.5-3 in) |
|---|---|---|---|
| 1 bomb (1 x 1) | 2.5 x 2.5 x 2.5 | 3 x 3 x 3 | 3.5 x 3.5 x 3.5 |
| 2 bombs (2 x 1) | 2.5 x 5 x 2.5 | 3 x 6 x 3 | 3.5 x 7 x 3.5 |
| 4 bombs (2 x 2) | 2.5 x 5 x 5 | 3 x 6 x 6 | 3.5 x 7 x 7 |
| 6 bombs (3 x 2) | 2.5 x 7.5 x 5 | 3 x 9 x 6 | 3.5 x 10.5 x 7 |
| 12 bombs (4 x 3) | 2.5 x 10 x 7.5 | 3 x 11.5 x 9 | 3.5 x 14 x 10.5 |
The 4-count (3 x 6 x 6) and 12-count (3 x 11.5 x 9) figures match published retail boxes built for 2.5 inch spheres, and the other cells apply the same rule. Treat all of them as typical starting points, then measure your own decorated bombs. A 12-count carton at 11.5 x 9 x 3 inches holds 310.5 cubic inches, which gives a dimensional weight of 2.23 lb at the carrier divisor of 139 and bills as 3 lb.

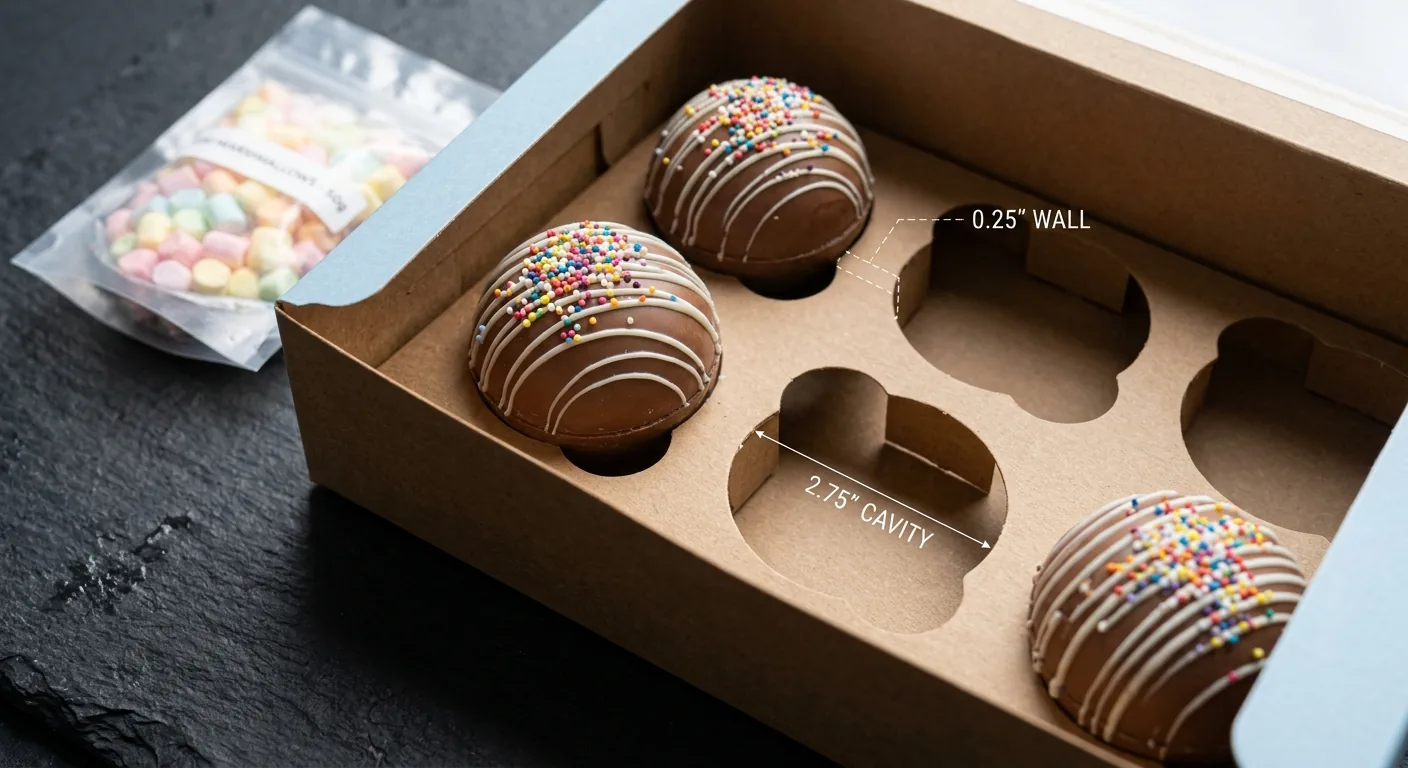

Cavity Insert Spacing So Shells Never Touch
Keep a 0.25 inch insert wall between neighboring bombs and cut each cavity 0.25 inch wider than the bomb, which sets the cell pitch at diameter plus 0.5 inch. A 2.5 inch bomb sits in a 2.75 inch cavity on a 3 inch pitch, so a 4 x 3 grid of those cells runs 12 x 9 inches. The published 11.5 inch retail box trims the width pitch to 2.875 inches, a tighter cell that still holds a 2.5 inch sphere.
Cavity depth matters as much as width. A well one third as deep as the bomb is wide (about 0.8 inch for a 2.5 inch bomb) cradles the lower curve and stops rolling, while a shallow well lets the sphere ride over its own wall. Cut inserts from 24 pt (460 GSM) board or heavier so the walls hold their 0.25 inch width under a stacked load.
Packify’s chocolate cavity boxes offer 12-cavity insert grids with depth cut to the tallest decoration point, which suits a 12-bomb tray. The same 0.5 inch rule applies: a cavity that is 0.25 inch too tight in a 4-cell row costs a full inch of tray length.
| Insert spec | Recommended | Tightest workable |
|---|---|---|
| Cavity width over bomb diameter | +0.25 in | +0.125 in |
| Wall between cavities | 0.25 in | 0.125 in |
| Cavity depth | 1/3 of diameter (0.8 in at 2.5 in) | 1/4 of diameter (0.6 in at 2.5 in) |
| Headroom above the topping | 0.25 in | 0.125 in |
Explore Our Packaging
Clearance for Marshmallow and Sprinkle Toppings
Box height equals bomb diameter plus the tallest topping plus 0.5 inch, so a plain 2.5 inch bomb fits a 3 inch box and the same bomb under a large marshmallow needs 4 inches.
| Topping on a 2.5 in bomb | Added height | Interior box height |
|---|---|---|
| Drizzle or fine sprinkles | Under 0.1 in | 3 in |
| Mini marshmallow cluster | About 0.5 in | 3.5 in |
| One large marshmallow | About 1 in | 4 in |
Measure the highest point of the decoration, not the shell, and keep window film on the inside of the lid so toppings never press against it. Packify’s custom chocolate bomb boxes use round-cut wells with clear window lids in single and four-count layouts, with the window cut above the well line to show the decorated crown.
A cocoa bomb gift box that also carries a mug and a marshmallow bag moves to rigid boxes with a 2 mm greyboard shell, where the bomb tray sits in its own compartment beside the mug.
How to Prevent Cracking and Melting
Hot cocoa bombs crack at the seam where the two hemispheres join, and the shell softens in the high 80s degrees Fahrenheit, so the box must stop movement and limit heat.
- Stop movement. A bomb that rolls half an inch strikes the wall with its full weight on the seam. Round wells and a gap under 0.125 inch per side remove the roll.
- Spread the load. Keep 6 and 12 counts to a single layer, and use 18 to 24 pt SBS paperboard (350 to 460 GSM) for the carton so the lid never flexes onto the shells.
- Control heat. Chocolate suppliers commonly switch to insulated shipping once outdoor temperatures reach about 70 degrees F, and a clear window in direct sun heats a shell faster than a solid lid.
- Protect the parcel. Ship finished cartons inside E-flute mailer boxes (about 1/16 inch board) with 1 inch of clearance on every side. That wraps a 12-count carton to 13.5 x 11 x 5 inches, which bills at 6 lb (742.5 divided by 139 is 5.34 lb, rounded up) against 3 lb for the bare carton.
Common Mistakes When Sizing Cocoa Bomb Packaging
Most cocoa bomb packaging failures trace to five sizing errors, and each one has a measurable fix.
| Mistake | What happens | Fix |
|---|---|---|
| Sizing to the mold diameter | A 2.5 in mold with sprinkles reads about 2.75 in, leaving only 0.25 in of total clearance in a 3 in cell | Caliper the decorated bomb, and move to the 3.5 in cell at 2.75 in |
| Walls under 0.125 in | Neighboring shells touch and seams split in transit | Hold 0.25 in walls |
| Ignoring topping height | The lid presses a marshmallow flat | Add topping height before the 0.5 in rule |
| Approving a 12-count die without a sample | A 0.25 in error per cell compounds to 1 in across a 4-cell row | Test a physical sample with real bombs |
| Shipping warm without insulation | Shells soften above the high 80s F | Use insulated shipping at about 70 F outdoors |
Rush Orders for the Holiday Season
Packify produces chocolate bomb boxes in 8 to 10 business days after artwork approval, and choosing ASAP (within 2 weeks) on the quote form flags the order as a rush run. Quotes return within 4 business hours, and shipping is free across the continental US.
Production dates count from artwork approval, so lock bomb diameter, count, and topping height before approving the proof. The table counts 10 business days of production (Thanksgiving, November 26, is not counted) plus 5 business days of ground transit.
| Artwork approved | Production complete | Latest ground arrival |
|---|---|---|
| Monday, November 2 | Monday, November 16 | Monday, November 23 |
| Monday, November 16 | Tuesday, December 1 | Tuesday, December 8 |
| Monday, November 30 | Monday, December 14 | Monday, December 21 |
A November 30 approval lands boxes four days before Christmas on December 25 with no room for a reprint. A mid-season restock belongs on retained dies, which also run 8 to 10 business days.
